Creality Raptor Pro 3D Scanner Dual Mode 22+7 Blue Laser Line/NIR 0.02mm Accuracy 60FPS Anti-Shake Tracking 24Bit Color Scanning

$2,596.44 CAD

Sale Sold out

Taxes included.

Default Title Default Title

Quantity

SPECIFICATIONS

Battery Included: No,No

Brand Name: CREALITY 3D,CREALITY 3D

Certification: CE,CE

High-concerned chemical: None,None

Model Number: Raptor Pro,Raptor Pro

Origin: Mainland China,Mainland China

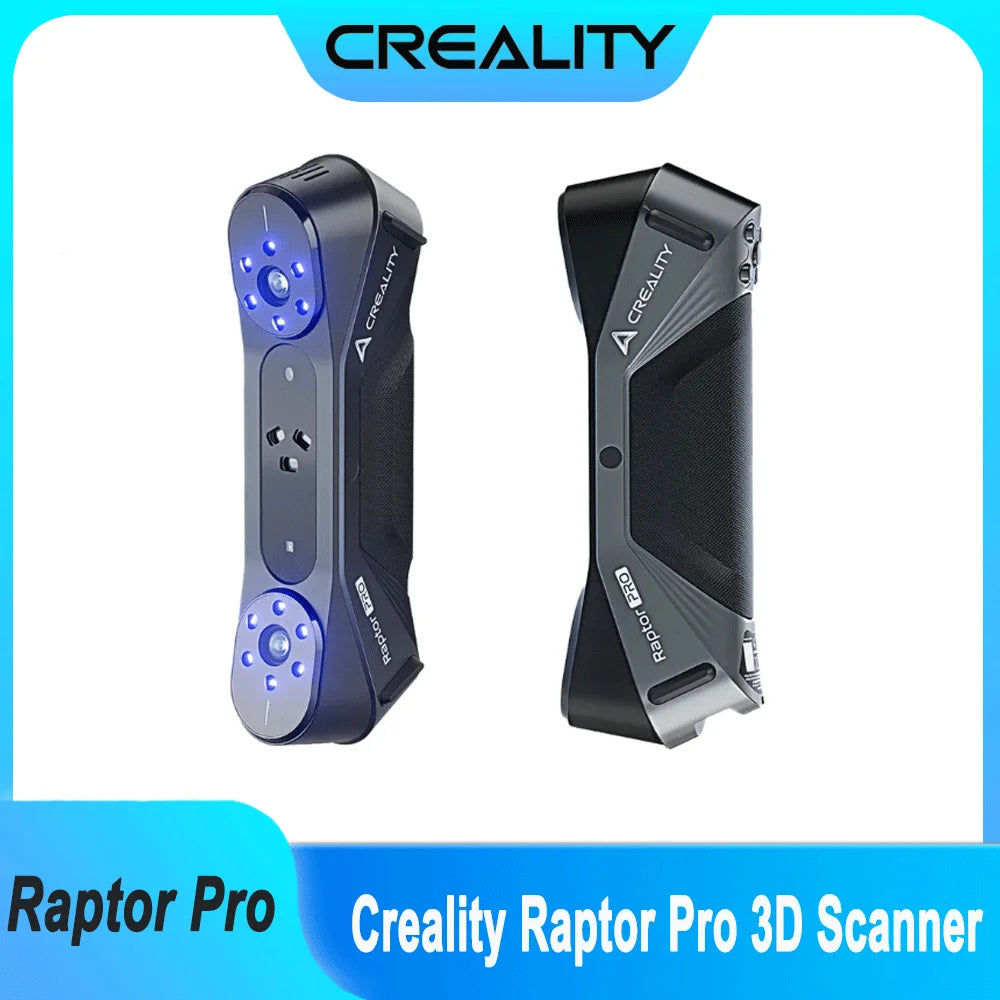

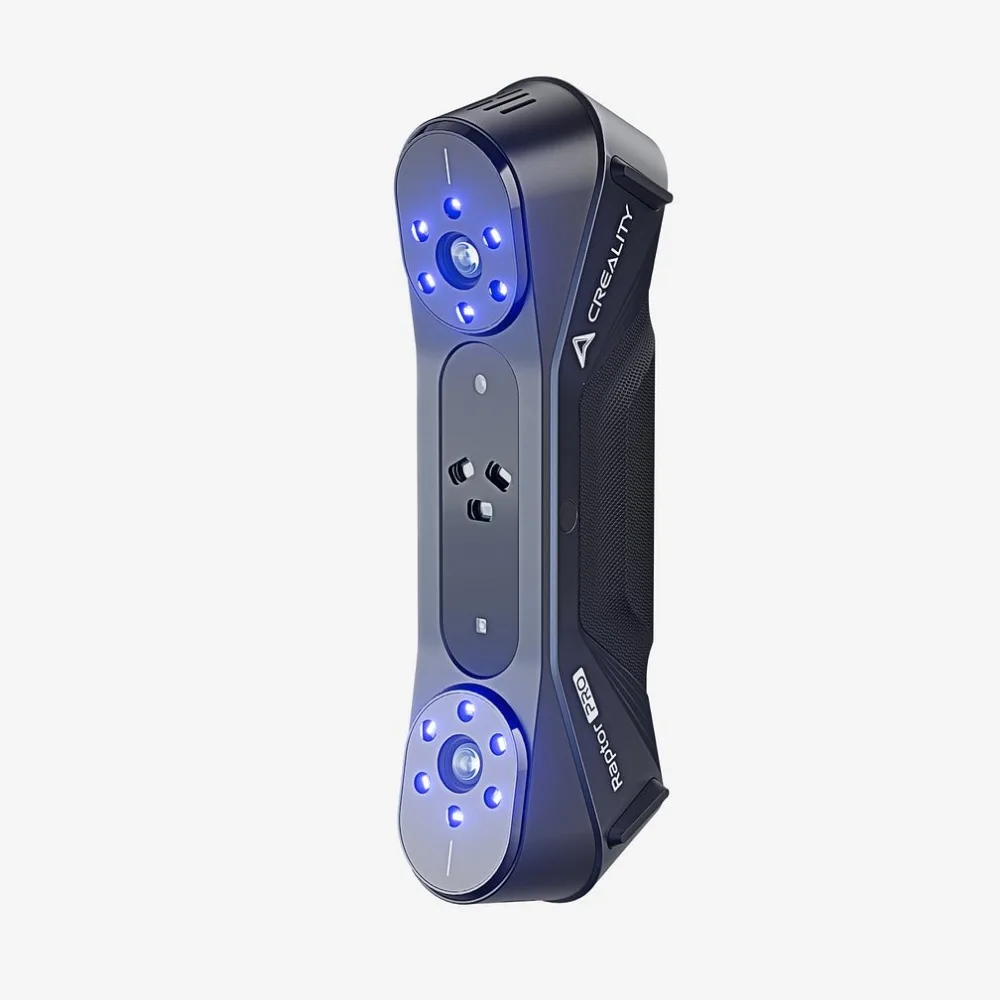

Creality Raptor Pro 3D Scanner

Scanning Mode : Blue Light(7 blue parallel laser lines&22 cross blue laser lines) / NIR(infrared binocular structured light)
Blue Light Mode: 7 blue parallel laser lines | 22 cross blue laser lines)
Accuracy: Up to 0.02mm
Volumetric Accuracy: 0.02+0.08mm/m
Scanning Speed: 420,000 measurements/s | 660,000 measurements/s
Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm( 22 cross blue laser lines)
Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm
Working distance: 160mm-400mm | 200-550mm
Outdoor Scanning: Below 50,000 lux | Below 10,000 lux
NIR(infrared binocular structured light) Mode:
Accuracy:Up to 0.075mm
Volumetric Accuracy: 0.075mm+0.1mm/m
Scanning rate: 3,580,000 measurements/s
Single Capture Range:630mm×550mm@1000mm
Working distance: 170mm-1000mm
Outdoor Scanning: Below 30,000
General Parameters:
System Support: Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above Minimum:i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above
Wireless Scanning: Support

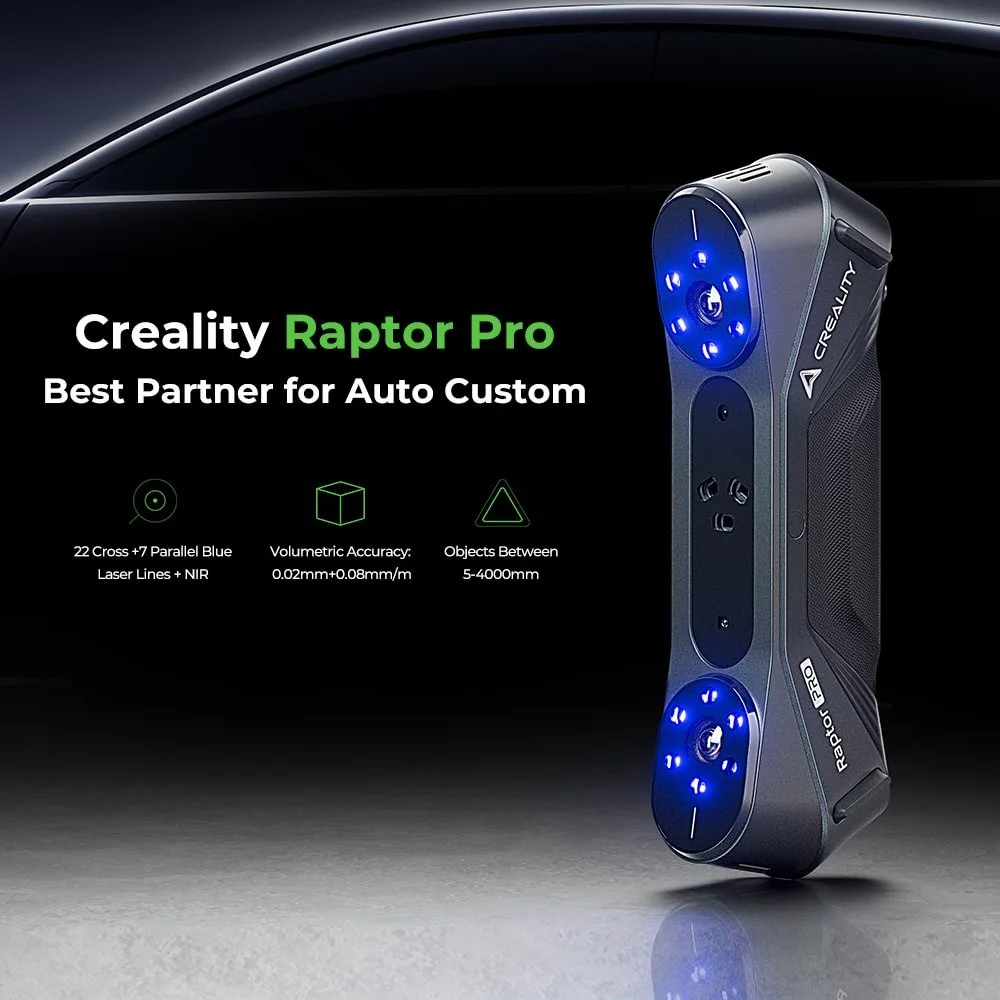

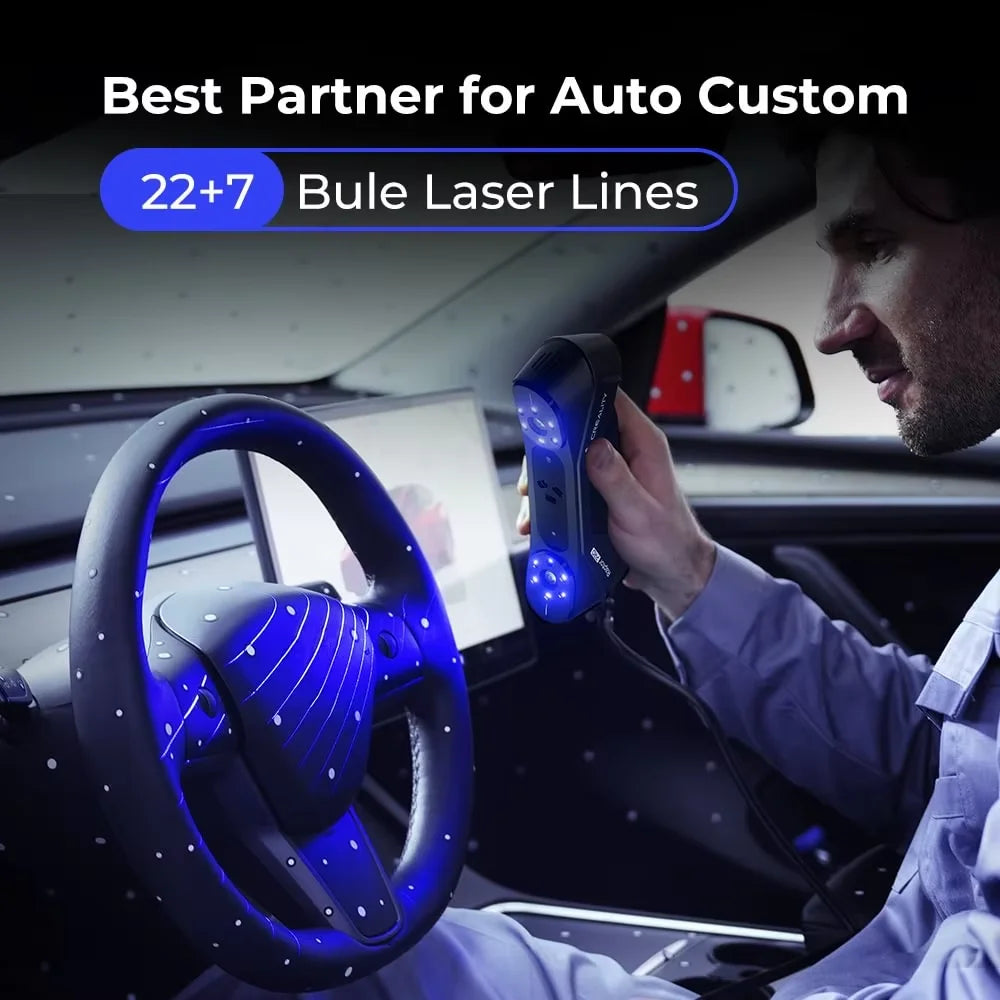

Best Partner for Auto Custom
22+7 Bule Laser Lines

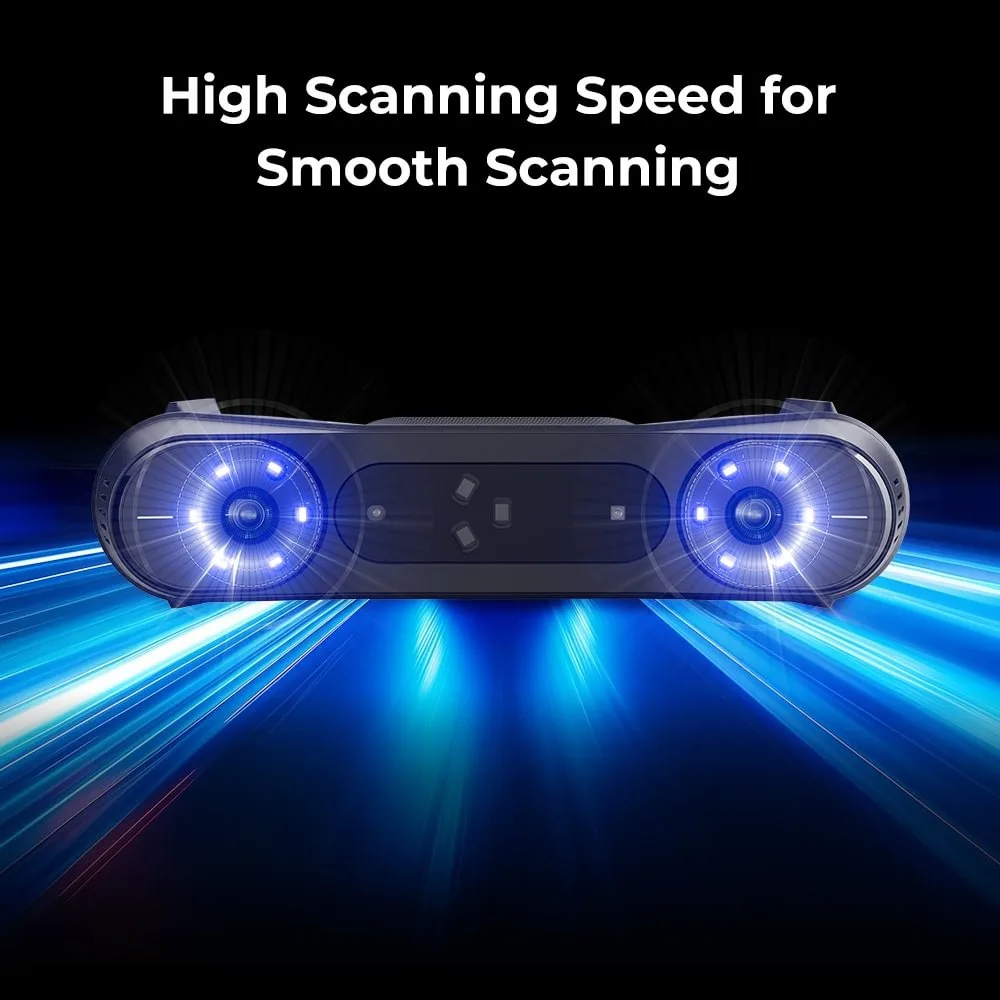

High Scanning Speed for Smooth Scanning

Two Blue Light Modes with Seamless Switchin

22 Cross Laser Lines

7 Laser Lines for Partial HD Scanning

NIR Structured Light Scanning
Markerless Scanning
Raptor Pro utilizes speckle matching 3D imaging, No markers needed for feature-rich workpieces. Objects can be scan quickly and directly.
Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details and easily scan hair, a human body scan only needs as quick as 2 minutes.

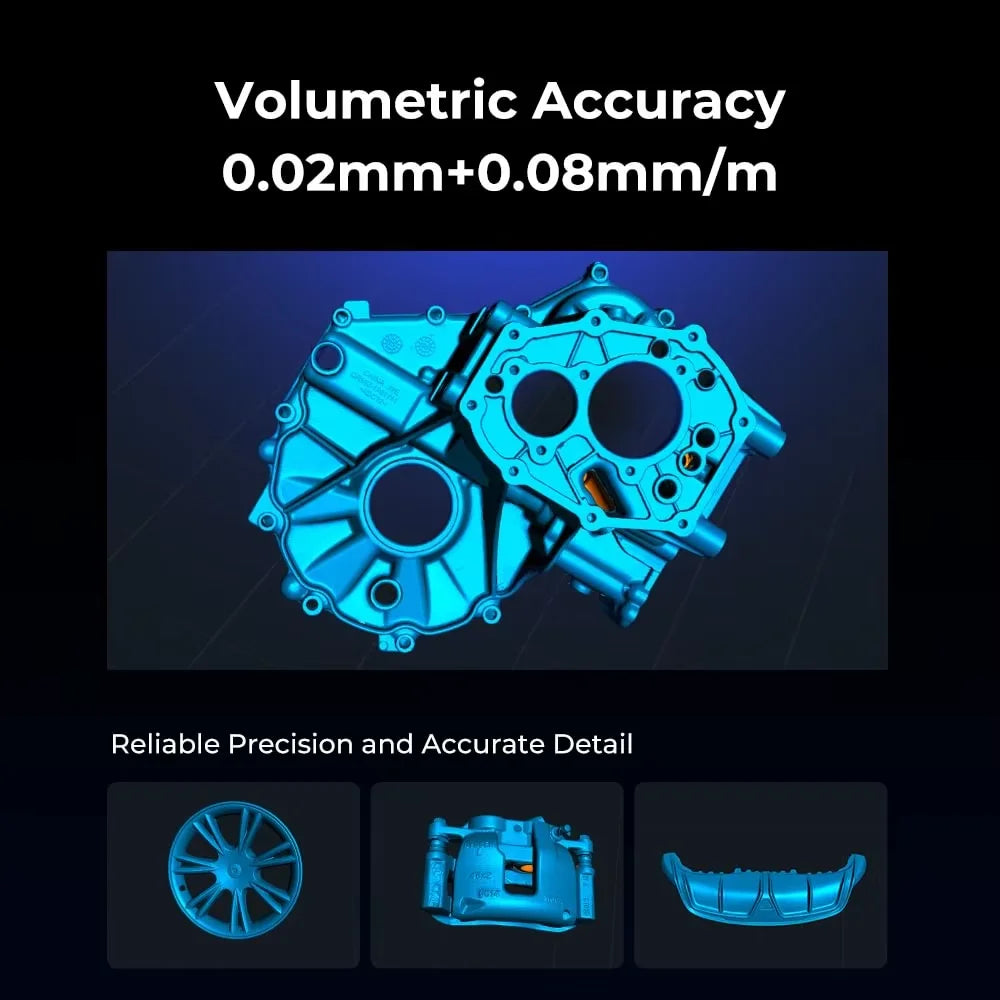

Volumetric Accuracy 0.02mm+0.08mm/m

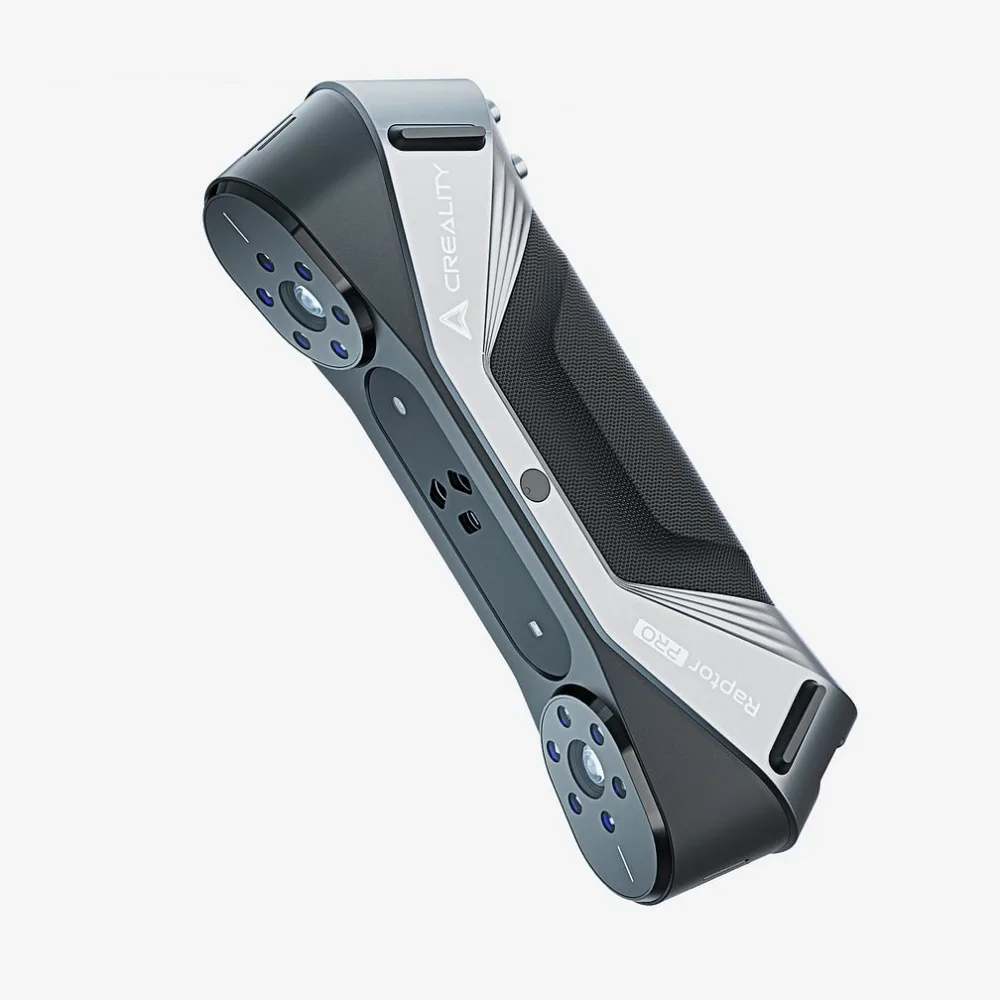

Creality Raptor Pro

High-quality 660,000 points/s, Fast Scan Speed

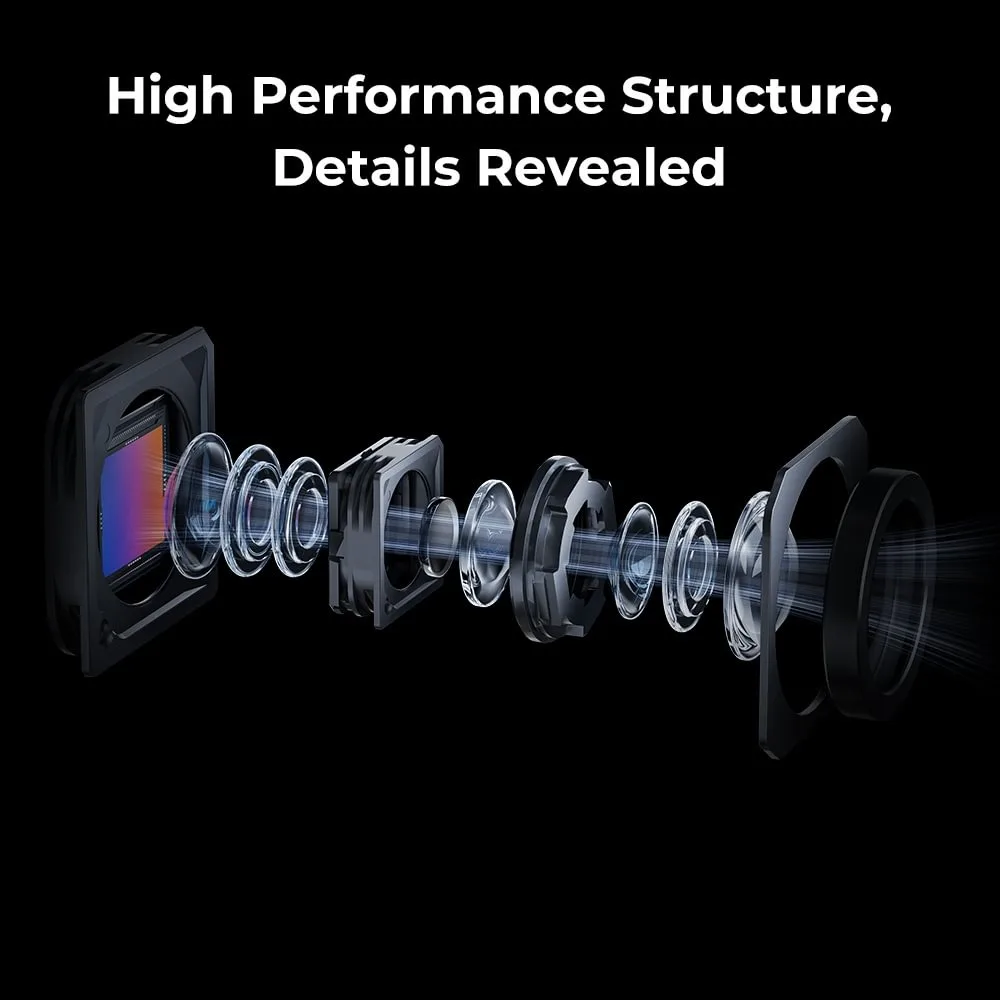

High Performance Structure,Details Revealed

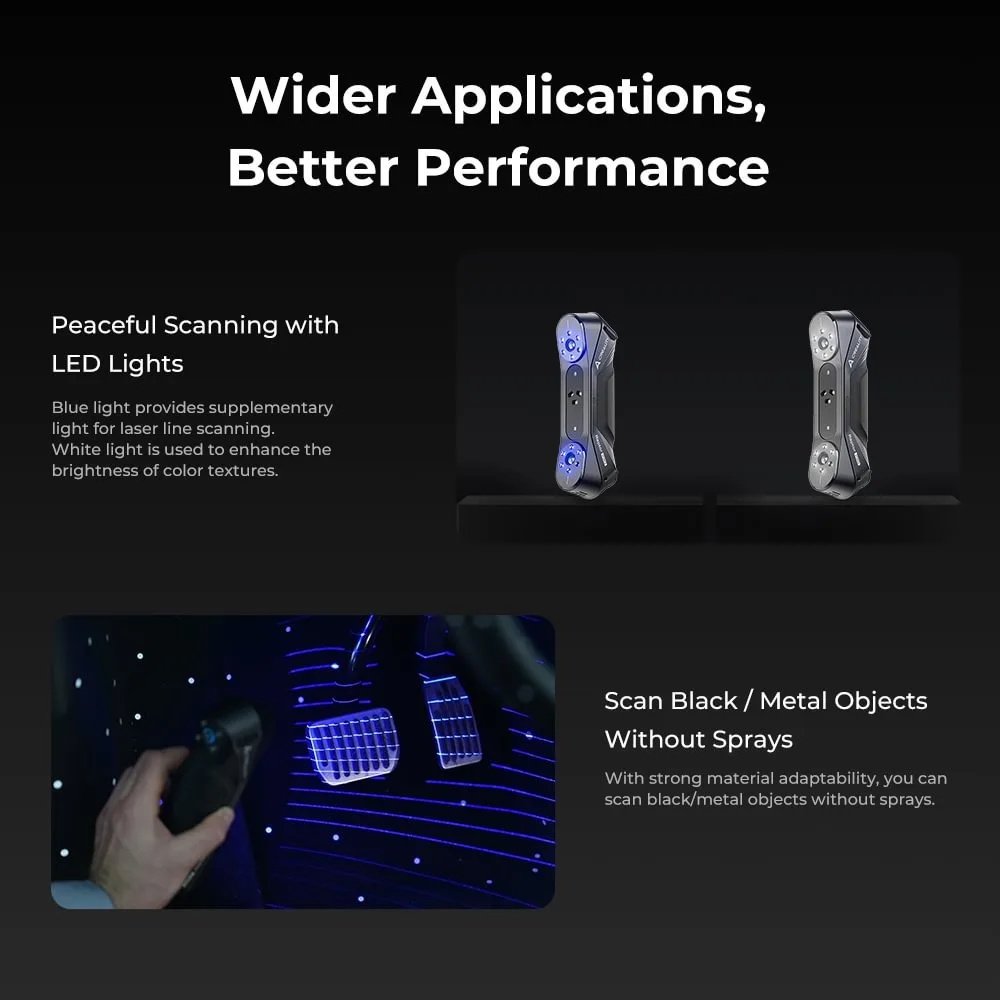

Wider Applications,Better Performance
Peaceful Scanning with LED Lights
Blue light provides supplementary light for laser line scanning. White light is used to enhance the brightness of color textures.
Scan Black/ Metal Objects Without Sprays
With strong material adaptability, you can scan black/metal objects without sprays.

24-bit Full-Color Scanning in All Modes

Wider Applications,Better Performance
Outdoor Scanning
Blue laser with strong environmentalresistance, delivers outstanding performance even in outdoor environments.
7-line laser: <50000 lux
22 cross lines: <100000 lux
Anti-shaking
Equipped with One-Shot 3D imaging technology, Raptor Pro is naturally stabilized and less likely to tracking loss.
Fast backtracking speed ensures smoother handheld scanning.
