SPECIFICATIONS

Active Drying Function: Adjustable, up to 60 °C

Advantages 1: Built for Klipper

Advantages 2: Print While Drying

Advantages 3: 16-Colors/Multi-material

Advantages 4: RFID Identification

Advantages 5: Filament Backup

Advantages 6: RGB Status Lights

Auto Filament Backup: Yes

Brand Name: BIGTREETECH

Communication: USB

Compatible Filaments: ABS, PETG, PLA, ASA, Nylon

Compatible Models: 3D printers using Klipper firmware (such as Voron 2.4, Trident, VzBot), and requires a filament cutter module integrated into the toolhead.

Custom RGB Lighting: Yes

Dual-System Compatibility: Yes

Filament Diameter: 1.75mm

High-concerned chemical: None

Input Voltage: AC 110-220 V

Item Type: Hardware Parts/Machine Parts

Klipper & Klipper Screen Support: Yes

LED Status Indicator: Yes

Model Number: ViViD

Origin: Mainland China

Packaging Size: 432 * 353 * 311 mm

Peak Drying Power (at 220 V): 423 W

Product Dimensions: 373 * 293 * 252 mm

RFID Detection: Yes

Rated Power: 7-162 W

Sealed Chamber: Yes

Supported Spool Size: 197 mm-201 mm

Supported System: Klipper only

ViViD Connection: ≤4

Why ViViD？

• Built for Klipper:Ready out of the box

• Print While Drying:Keep filament dry for consistent quality

• 16-Colors/Multi-material:Unlimited color freedom and creativity

• RFID Identification:Auto-sets color and temperature for printing

• Filament Backup:Reduces failures and waste

• RGB Status Lights:Know ViVid status at a glance

Designed for Klipper

Multi-Color Freedom, Out of the Box

ViViD is different. Unbox it, integrate the filament cutter, and print in full color.
That's it.

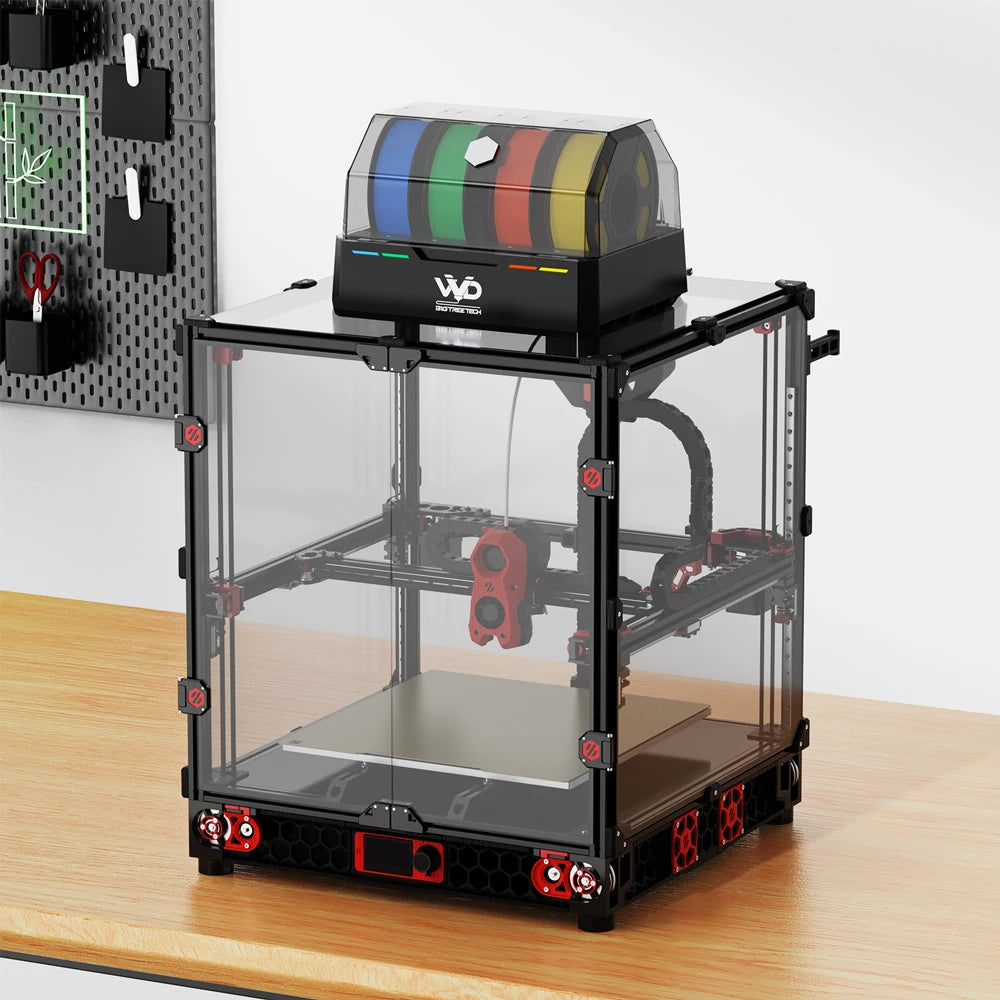

Compatible with Voron 2.4, Trident, Vzbot, and more.

Support Up to 16 Colors

Each ViViD handles 4 filaments. Chain up to 4 units together to unlock 16-color printing capability for vivid multi-color prints.

*Please Note: A 5-port hub is required to connect two or more ViViD units. We advise printing this hub ahead of time for a smooth setup.

Happy Hare Firmware Support

Use ViViD's native firmware or switch to open-source Happy Hare—your choice.

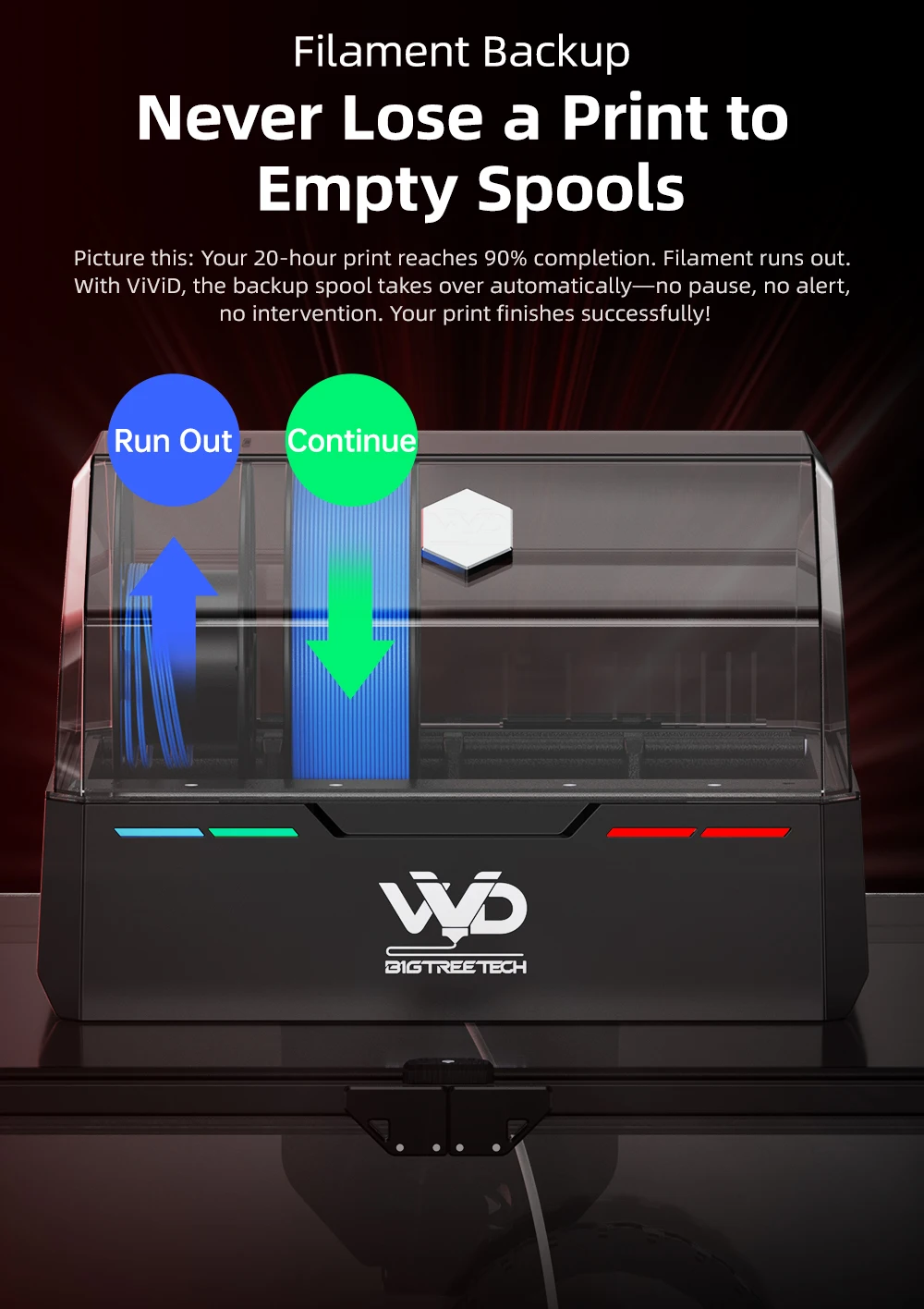

Filament Backup

Never Lose a Print to Empty Spools

Picture this: Your 20-hour print reaches 90% completion. Filament runs out. With ViViD, the backup spool takes over automatically—no pause, no alert, no intervention. Your print finishes successfully!

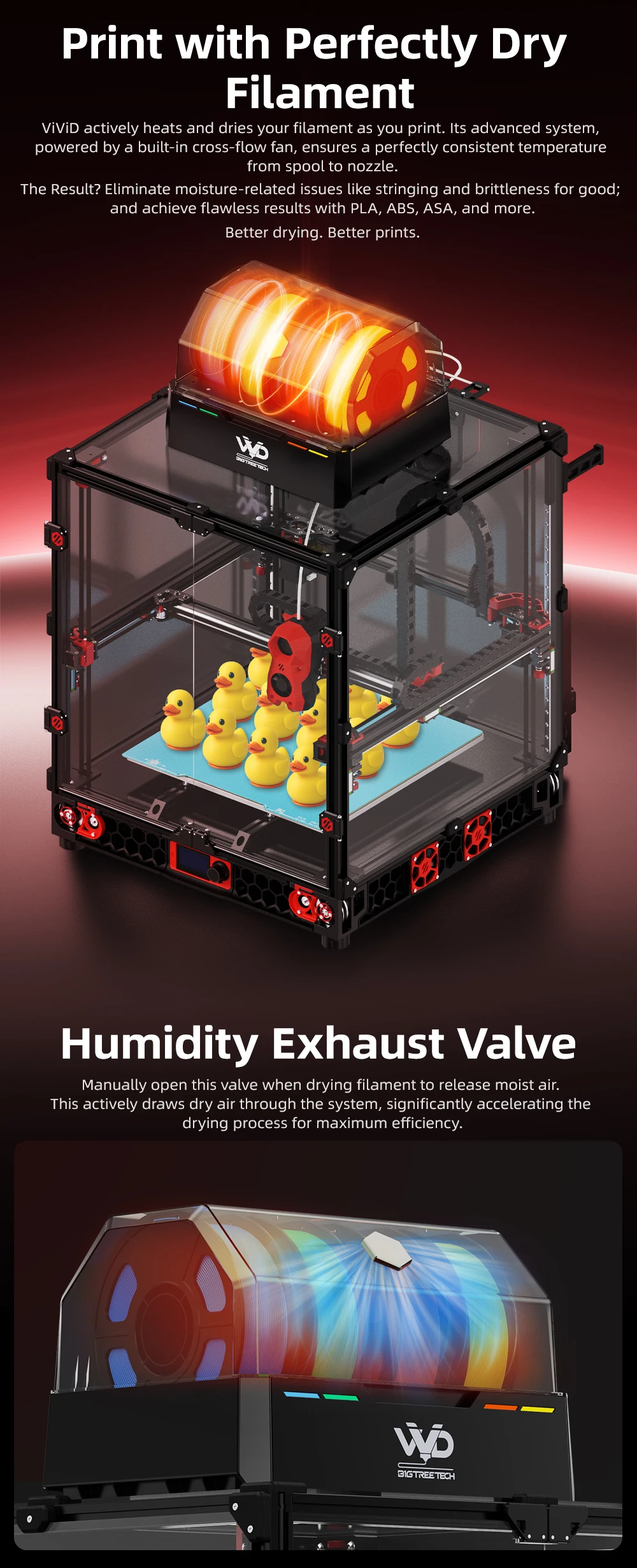

Print with Perfectly Dry Filament

ViViD actively heats and dries your filament as you print. Its advanced system, powered by a built-in cross-flow fan, ensures a perfectly consistent temperature from spool to nozzle.

The Result? Eliminate moisture-related issues like stringing and brittleness for good; and achieve flawless results with PLA, ABS, ASA, and more.

Better drying. Better prints.

Humidity Exhaust Valve

Manually open this valve when drying filament to release moist air. This actively draws dry air through the system, significantly accelerating the drying process for maximum efficiency.

RFID Filament Identification

ViViD can read RFID tags that follow open-standard protocols.

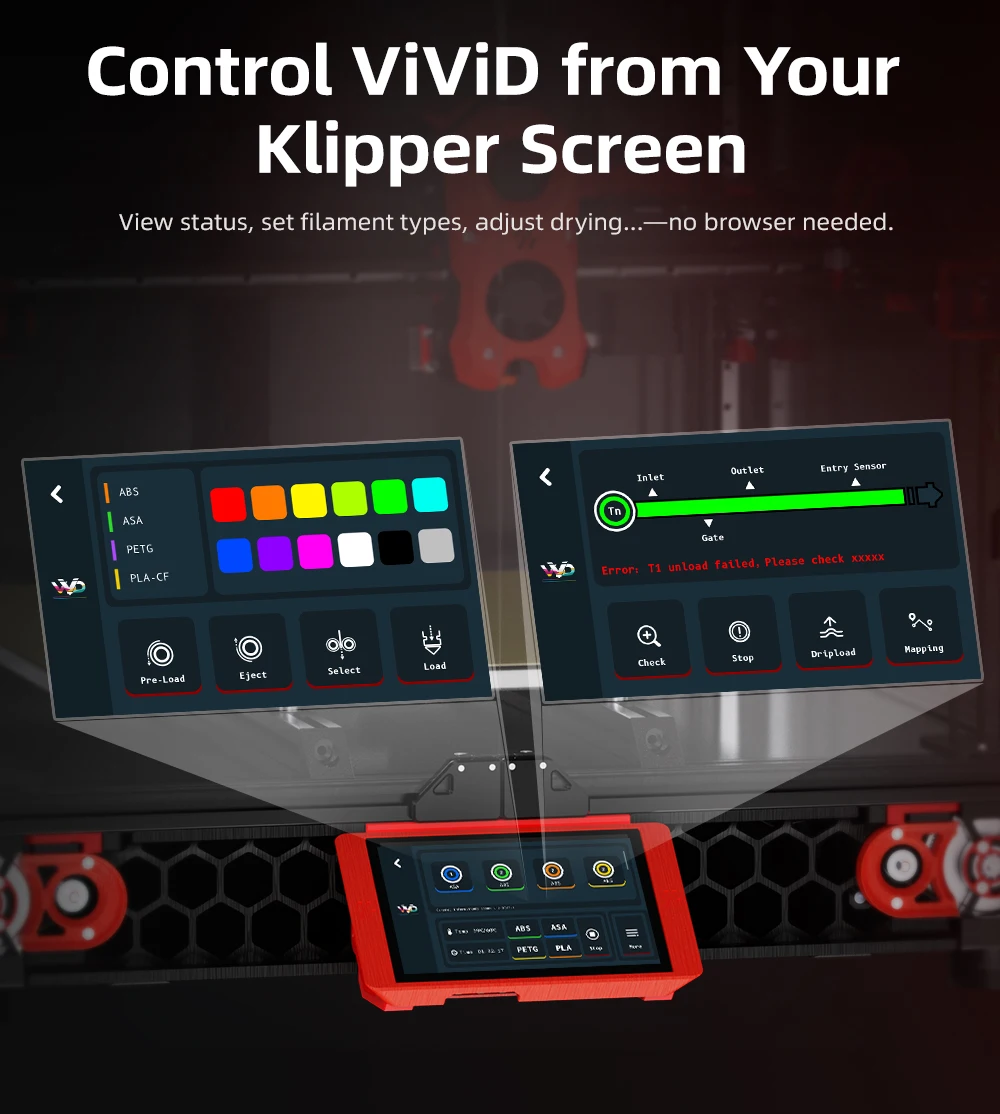

Control ViViD from Your Klipper Screen

View status, set filament types, adjust drying...—no browser needed.

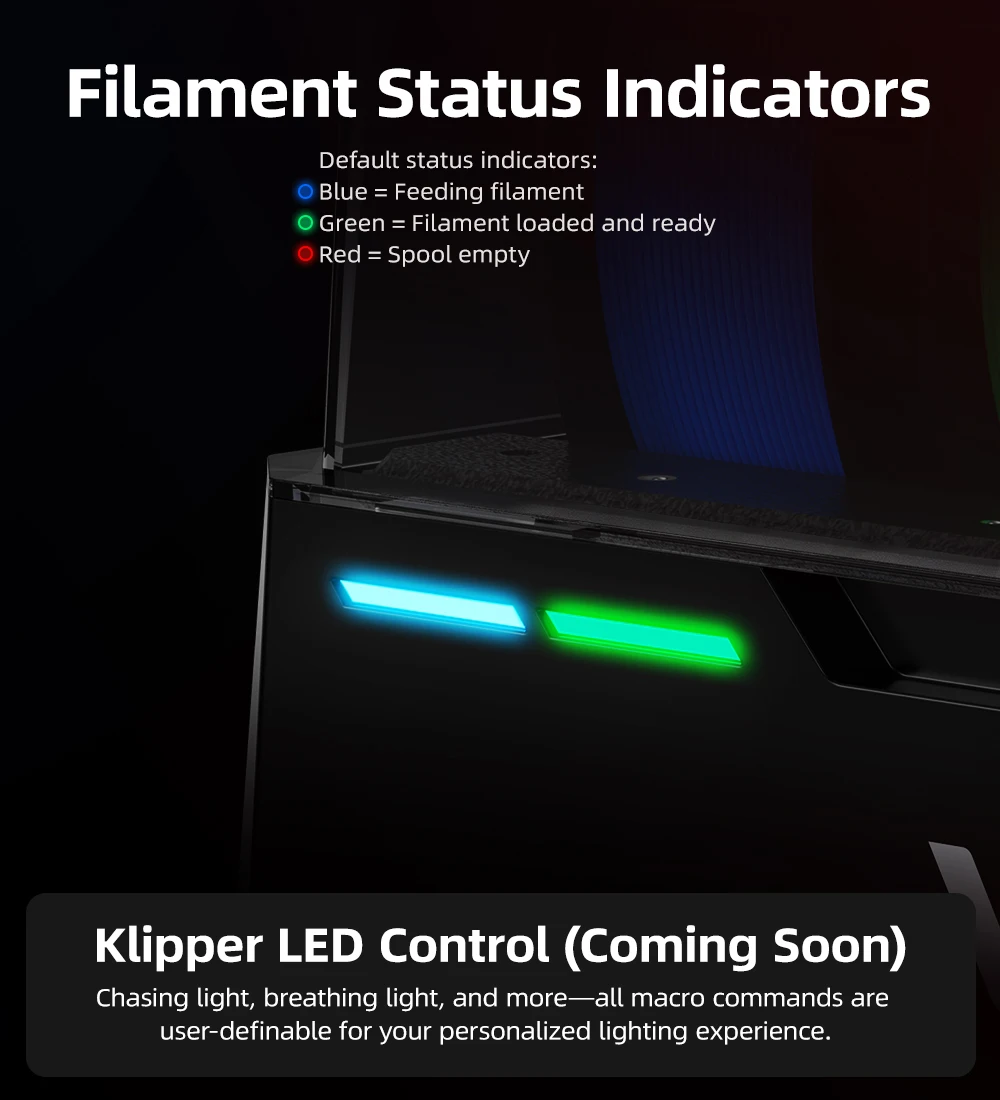

Filament Status Indicators

Default status indicators:

• Blue = Feeding filament

• Green = Filament loaded and ready

• Red = Spool empty

Klipper LED Control (Coming Soon)

Chasing light, breathing light, and more—all macro commands are user-definable for your personalized lighting experience.

Specifications

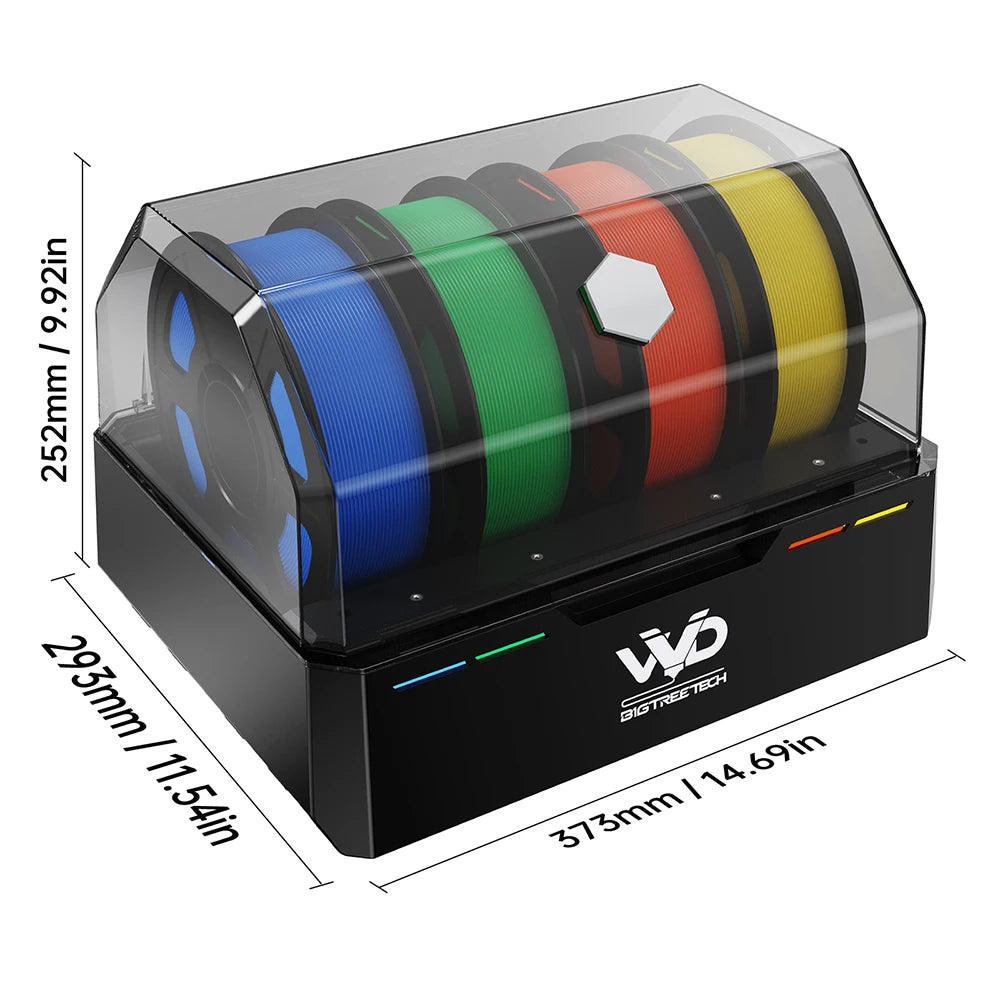

Product Dimensions:373 × 293 × 252 mm

Packaging Size:432 × 353 × 311 mm

Supported System:Klipper only (Marlin not supported)

Compatible Models:3D printers using Klipper firmware (such as Voron 2.4, Trident, VzBot), and requires a filament cutter module integrated into the toolhead.

Compatible Filaments:ABS, PETG, PLA, ASA, Nylon

Filament Diameter:1.75mm

Supported Spool Size:197 mm一201 mm

RFID Detection:✓

Input Voltage:AC 110-220 V

Rated Power:7–162 W

Peak Drying Power (at 220 V):423 W

Communication:USB

ViViD Connection:≤4

LED Status Indicator:✓

Custom RGB Lighting:✓

Auto Filament Backup:✓

Active Drying Function:✓Adjustable, up to 60 °C

Sealed Chamber:✓

Klipper & Klipper Screen Support:✓

Dual-System Compatibility:✓
